CRAWLER UNDERCARRIAGES

S Series

  • CRAWLER SIDE FRAME
  • ARTICULATED SIDE FRAMES
  • H DESIGN RIGID FRAME
  • X DESIGN RIGID FRAME

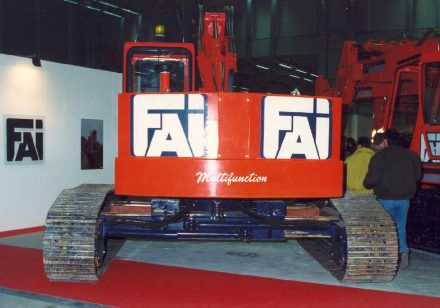

  • HYDRAULIC VARIABLE GAUGE

foto-scheda-crawler

DESCRIPTION AND APPLICATION

The crawler undercarriages made by S.A.I.C.I. are the result of the high experience active for over 30 yerars. The range includes 16 models and 5 versions.
S.A.I.C.I. was the first manufacturer to project variable gauge undercarriages with hydraulic system. High care has been applied to choose all components like chains, rollers, final drives of the best marks.
The frames are produced with high quality tensile steels. The welding processes are submerged arc welding.

TYPE Wheel [mm] Gauge [mm] Shoe width [mm] Tractive eff. [daN] Speed [Km/h]

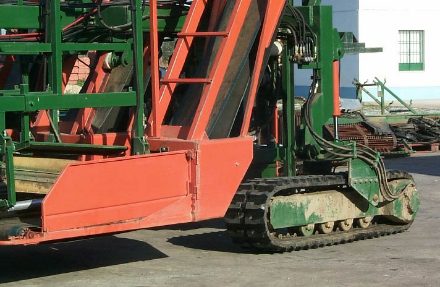

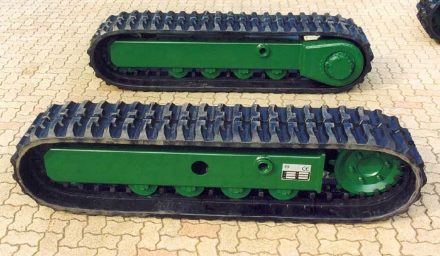

S112 1200 - 3000 850 – 2200 – VG 250 - 400 9.000 0,2 – 3,5
S116 1500 - 3500 850 – 2500 – VG 250 - 500 12.000 0,2 – 3,5
S220 2000 - 4500 1800 – 2500 – VG 350 - 500 15.000 0,2 – 3,5

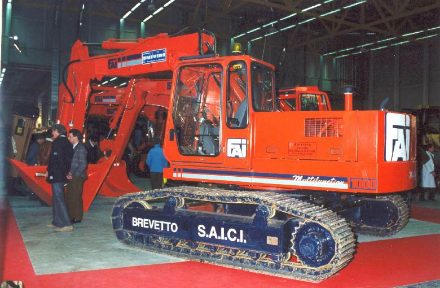

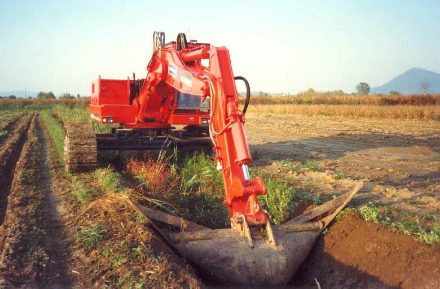

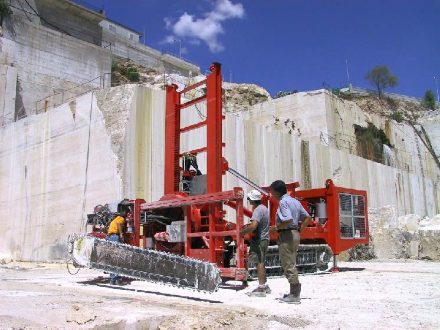

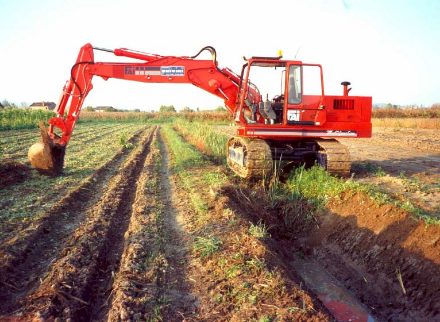

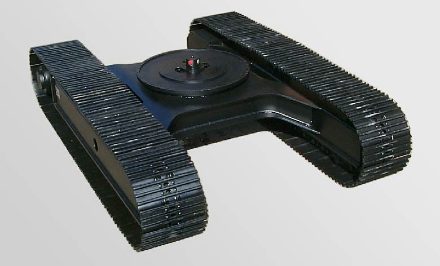

S225 2200 - 4500 1800 – 2500 – VG 350 - 600 18.000 0,2 – 3,5

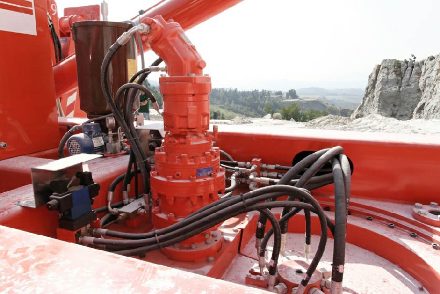

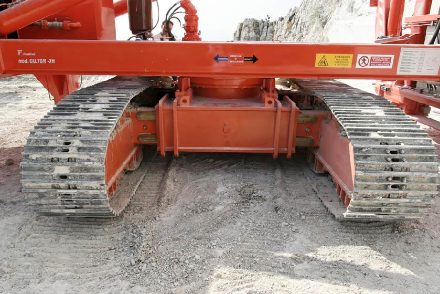

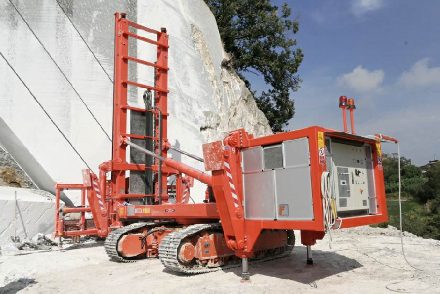

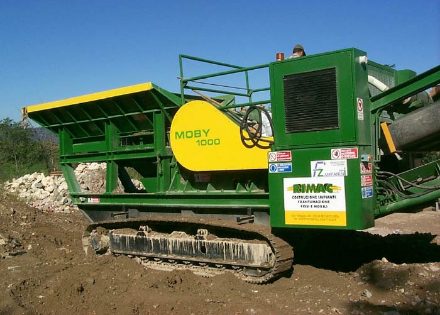

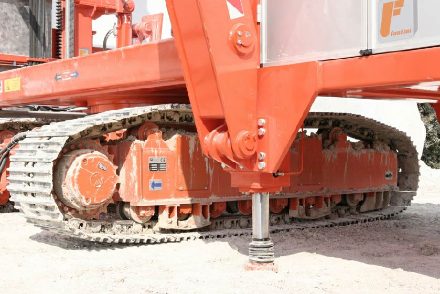

S330 2200 - 4500 2000 – 3000 – VG 400 - 700 23.000 0,2 – 3,5

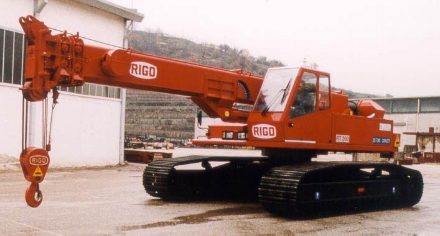

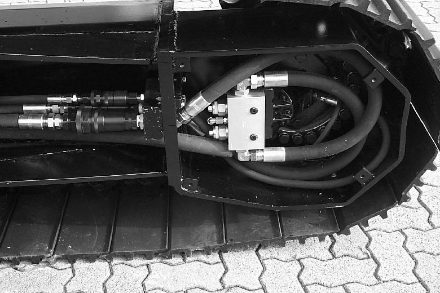

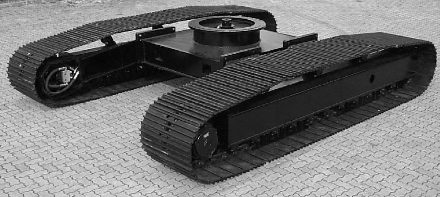

S440 2500 - 5500 2000 – 3000 – VG 400 - 800 30.000 0,2 – 3,5

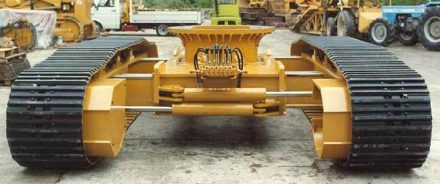

S550 2500 - 6500 2200 – 3500 – VG 400 - 1000 40.000 0,2 – 3,5

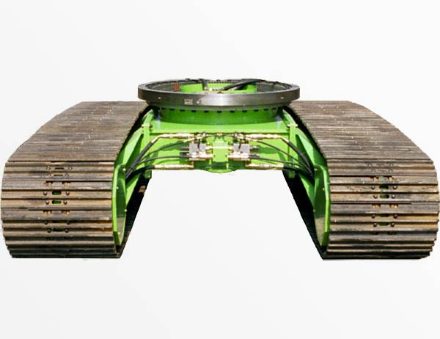

S770 3500 - 7000 2200 – 3000 – VG 400 - 1000 52.000 0,2 – 3,5
S990 3500 – 7000 2200 – 3000 – VG 400 - 1000 60.000 0,2 – 3,5
S1150 3500 – 7000 2200 – 4000 – VG 400 - 1000 100.000 0,2 – 3,5
S2200 3500 – 7500 2200 – 4000 – VG 400 - 1000 150.000 0,2 – 3,5
S2250 3500 – 7500 2200 – 4000 – VG 400 - 1000 160.000 0,2 – 3,5
S3300 4000 – 6000 2500 – 5000 – VG 400 - 1000 220.000 0,2 – 3,5
S3350 4000 – 8000 2500 – 5000 – VG 400 - 1200 260.000 0,2 – 3,5
S4450 4000 – 8500 2500 – 6000 – VG 400 - 1400 330.000 0,1 – 3,5
S6600 5000 – 10000 3000 – 8000 - VG 600 - 1400 450.000 0,1 – 3,5
* VG = variable gauge

see technical sheets

from 4,5 T to 6 T   from 6 T to 10 T   from 10 T to 15 T   from 15 T to 25 T

from 21 T to 35 T   from 30 T to 45 T   from 35 T to 60 T   from 50 T to 80 T
